Caratteristiche Tecniche

Potenza d'uscita

DIN Continuous Power Output (1kHz) 8 ohm 110W x 2

DIN Continuous Power Output (1kHz) in Surround Front 110W per channel (8 ohm)

DIN Continuous Power Output (1kHz) in Surround Centre 110W (8 ohm)

DIN Continuous Power Output (1kHz) in Surround Rear 110W per channel (8 ohm)

Audio

Accurate Imaging System : 5-Channel Equal Power

Digital Signal Processor (DSP) (6-mode)

THX Ultra

Dolby Digital

Dolby Pro Logic Surround

5-D Theater

Direct Energy MOS FET Amplifier

Direct Switch

Motor Driven Volume Control (electronic)

Digital Noise Reduction

MPEG Audio (Digital Output)

DTS (Digital Theater System) (Digital Output)

96 kHz/24-bit Twin D/A Converter

Midnight listening mode

Advanced Theater (4-mode)

Radio

Random Preset Stations (30)

3-Speed Accerlerated Tuning

RDS with EON Link

Varie

DVD Control

MCD Control

Satellite control

Multi Operation Remote Control (Macro)

Flexible Macro

Graphical User Interface (on-screen display)

Remote Key Illumination

FL Dimmer

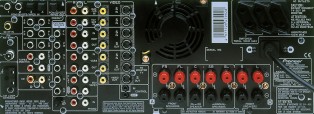

Collegamenti

Dolby Digital Input : RF (demodulator)

5.1 Channel Input (external)

Preamp Output (Front / Center / Rear / Subwoofer) (All)

SR (System Remote) Terminal In/out

Audio (Tuner Included) / Video Inputs : 5/5

A/V Input on Front

Large Speaker Terminals (All)

Speaker Outputs : A + B (parallel)

Digital Input : 2 optical

Digital Input : 2 coaxial

S-Video Input : 5

A/V Outputs : 2/2 (A/V) + 1 (V)

Speaker Outputs : discrete outputs (all channels)

S-Video Output : 3

S1/S2 (S2 only)

Phono Input

Generali

Power Requirements : 220 - 230V, 50 - 60 Hz

Dimensions (W x H x D) : 420 x173 x 470 mm

Weight : 16 kg
